Shelly 1 Gen4

Shelly 1 Gen4

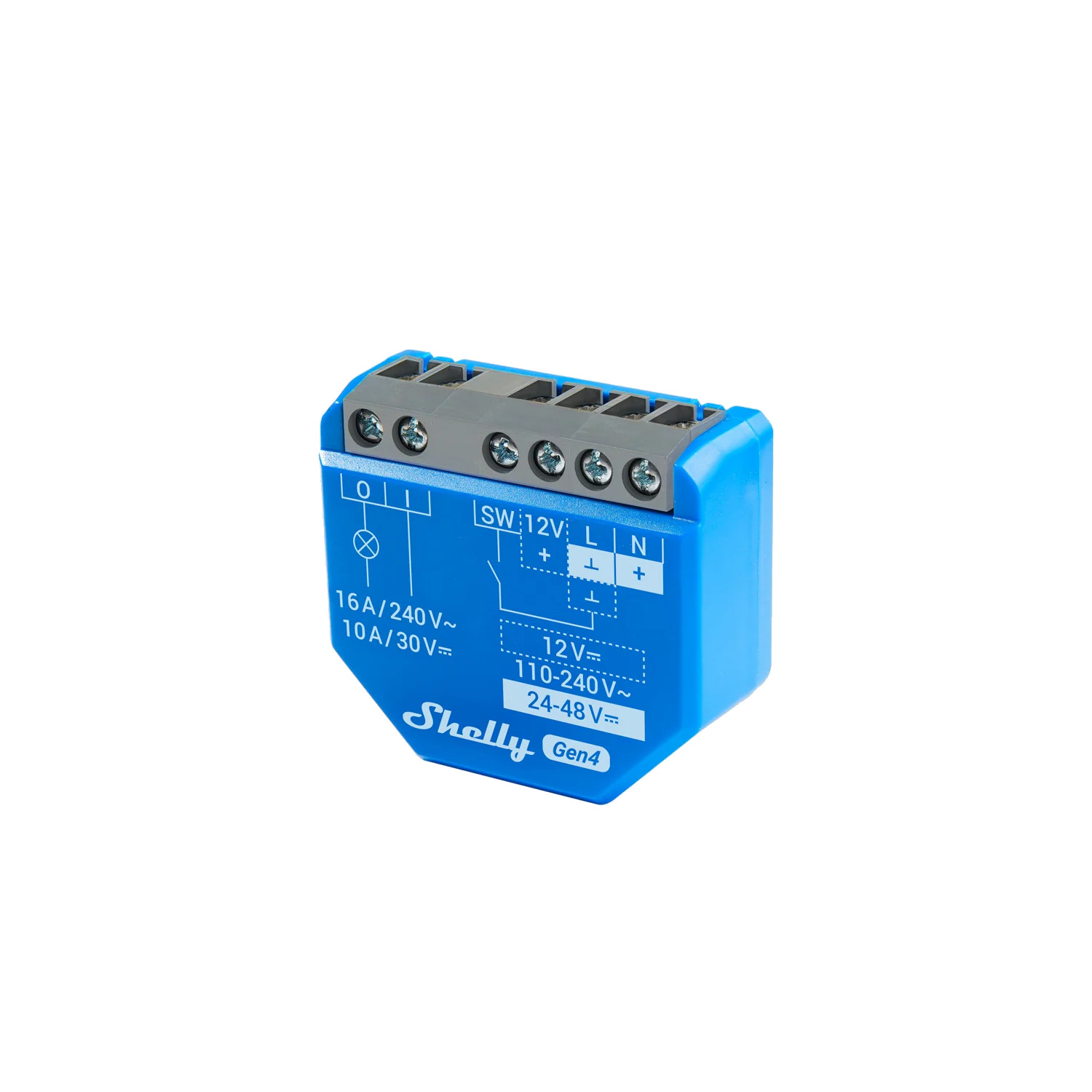

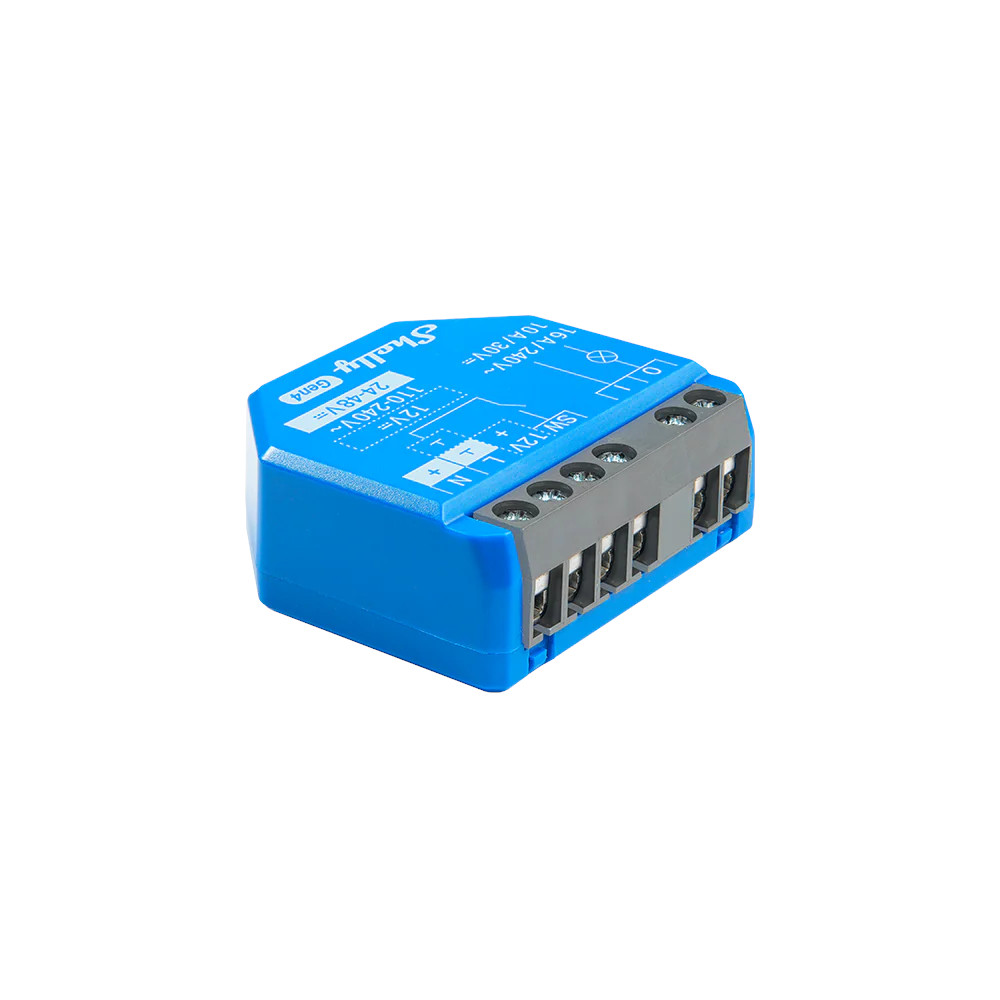

The Shelly 1 Gen4 is a small form factor 16 A smart switch with potential-free contacts, which allows remote control of electric appliances through a phone, tablet, PC, or home automation system.

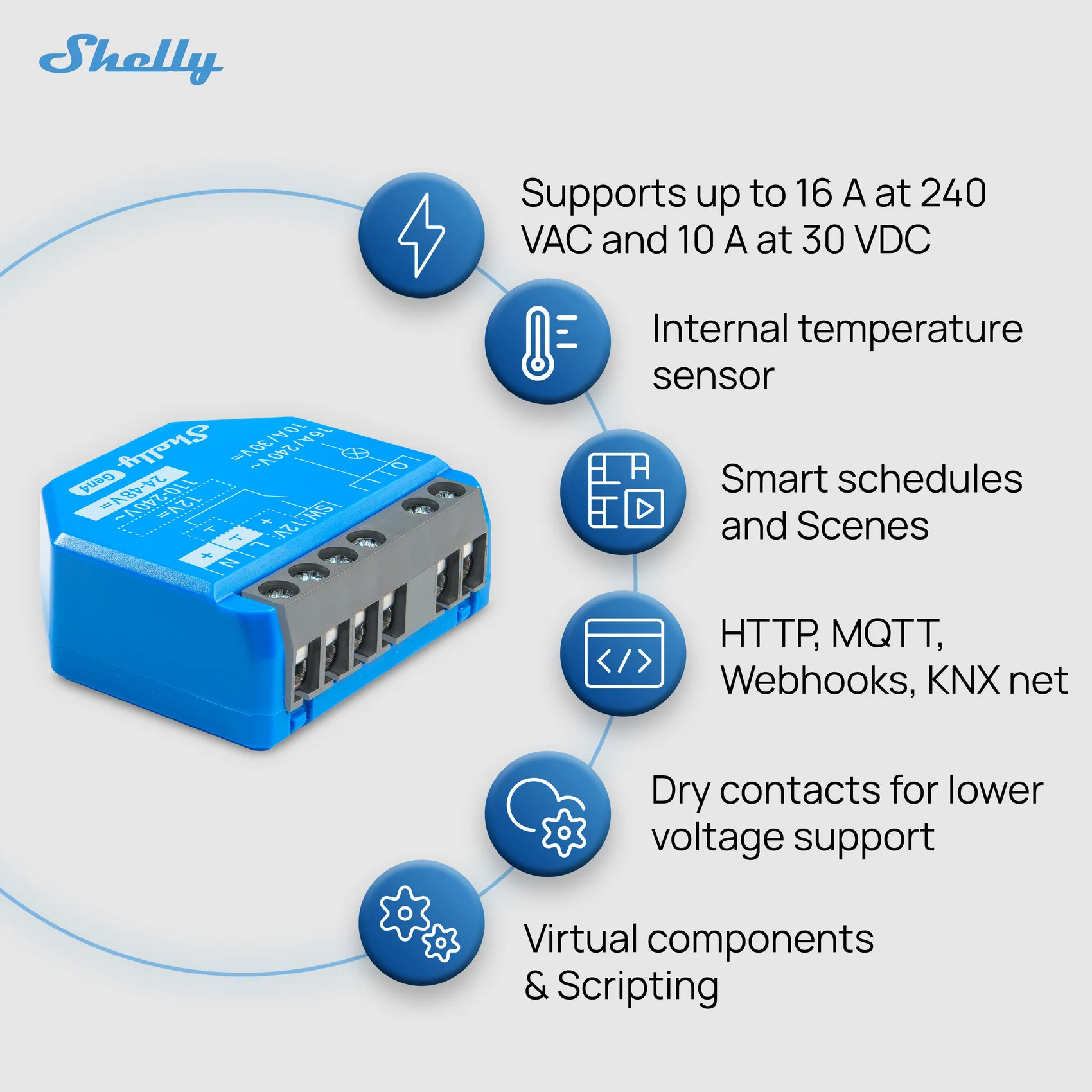

Key Features

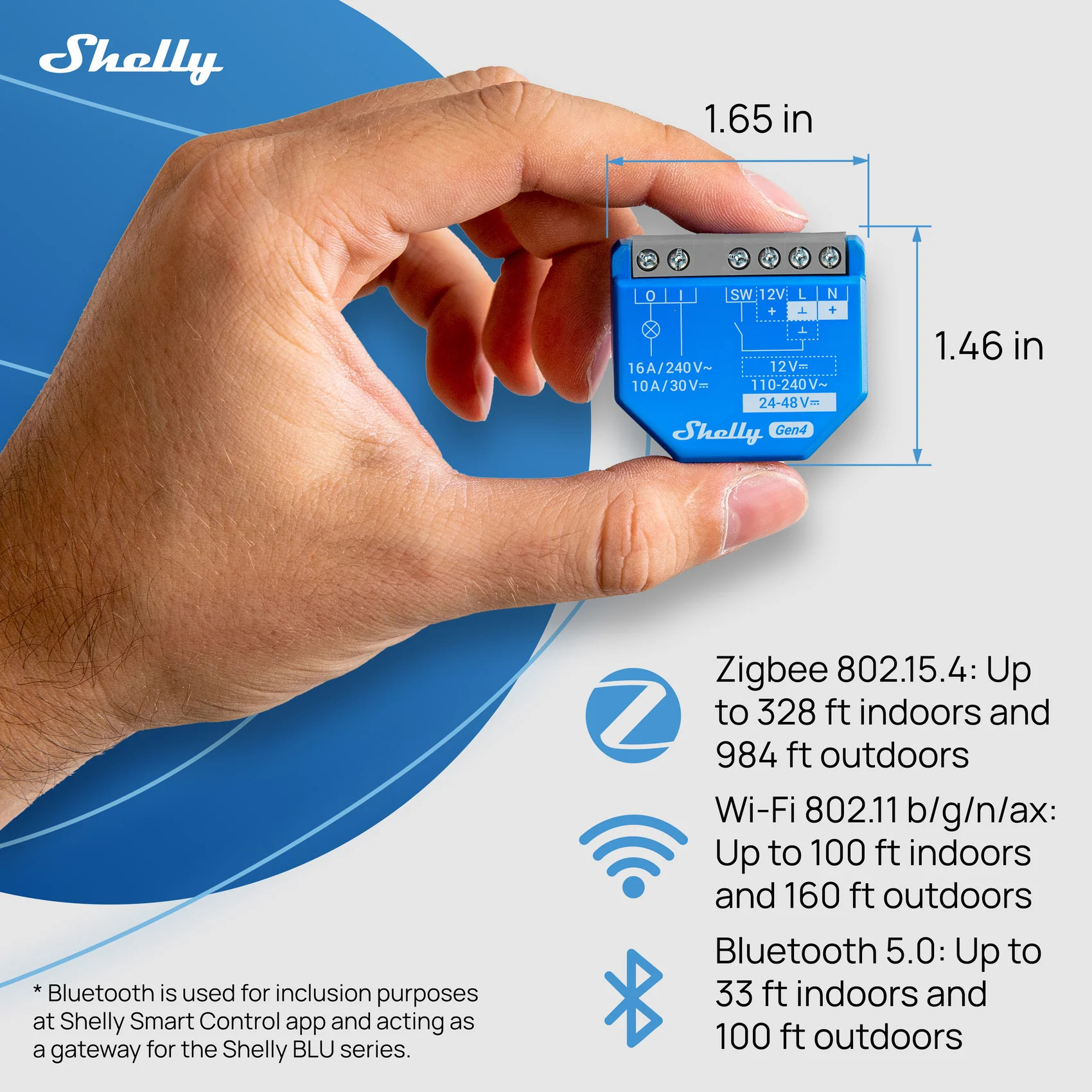

Multiprotocol Connectivity

Choose the best protocol for your smart home between Bluetooth, Wi-Fi, or Zigbee.

Matter Certified

Integrates into any Matter ecosystem.

Dry Contacts

Control a wide range of devices and appliances.

High/Low Voltage Support

Supports a wide range of output voltage levels, and allows switching on/off of lower voltage devices.

Smart Schedules

Set custom schedules based on your daily routine, or sync with sunrise/sunset to turn lights on at sunset and off at bedtime.

Smart Scenes

Set custom scenes by pairing this device with other devices in your smart home to automate your lighting, garage door, and irrigation system.

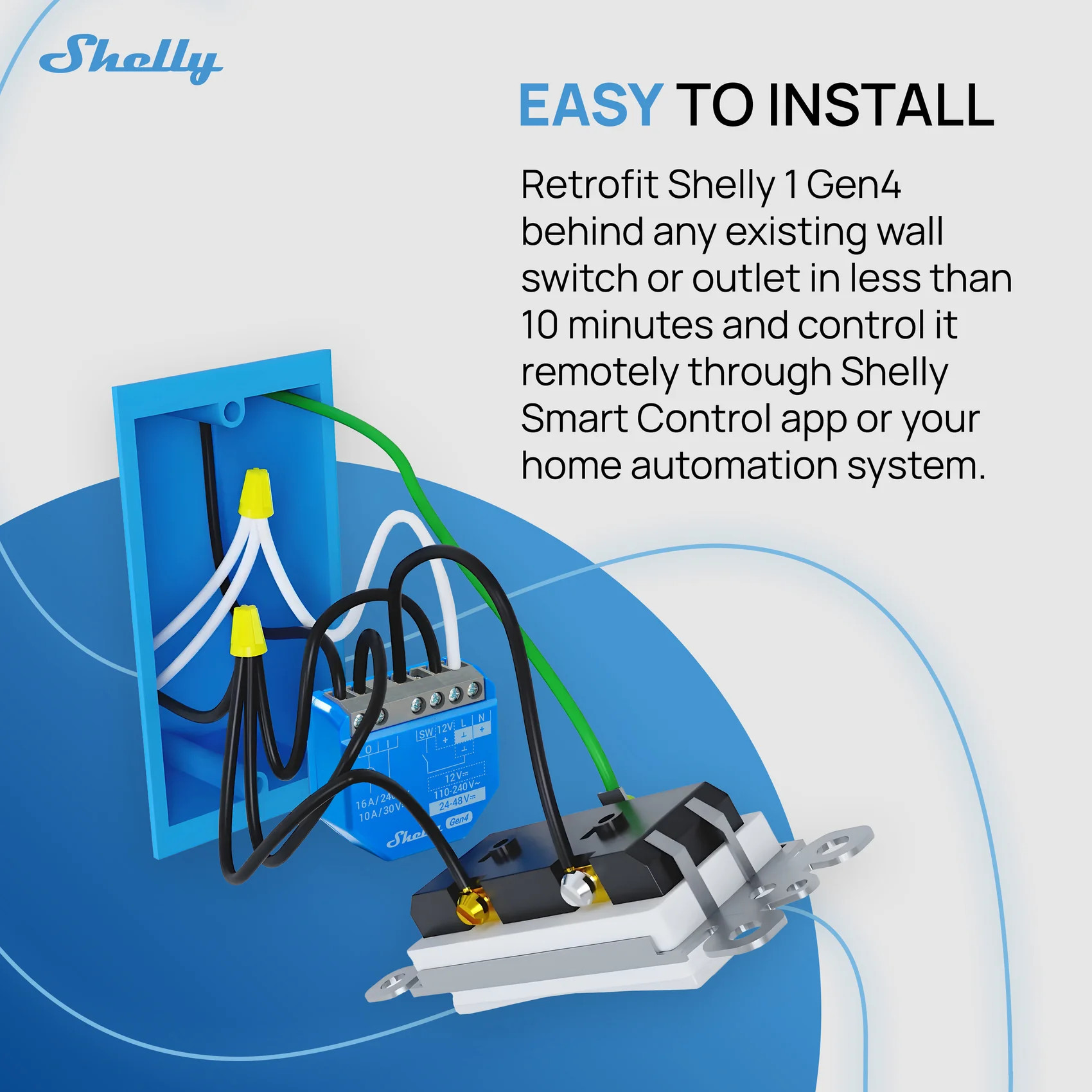

Retrofit Your Setup

It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches and other places with limited space.

Specifications

• Environmental
  • Ambient working temperature: -5°F to 105°F
  • Humidity: 30% to 70% RH
  • Maximum Altitude: 6562 ft
• Electrical
  • Power supply: 110-240 V~ | 24-48 V⎓ | 12 V⎓
  • Power consumption: < 1 W
  • External protection: Cable protection switch in accordance with EN60898-1
    • Tripping characteristic B or C
    • Maximum 16 A rated current
    • Minimum 6 kA interrupting rating
    • Energy limiting class 3
• Output Circuits Ratings
  • Maximum switching voltage: 240 V~ | 30 V⎓
  • Maximum switching current: 16 A (240 V~) | 10 A (30 V⎓)

Note

• If you are not comfortable working with wiring, please hire a licensed electrician.
