Cliff Quicktest QT1
Description
Cliff Quicktest QT1 | CL1857

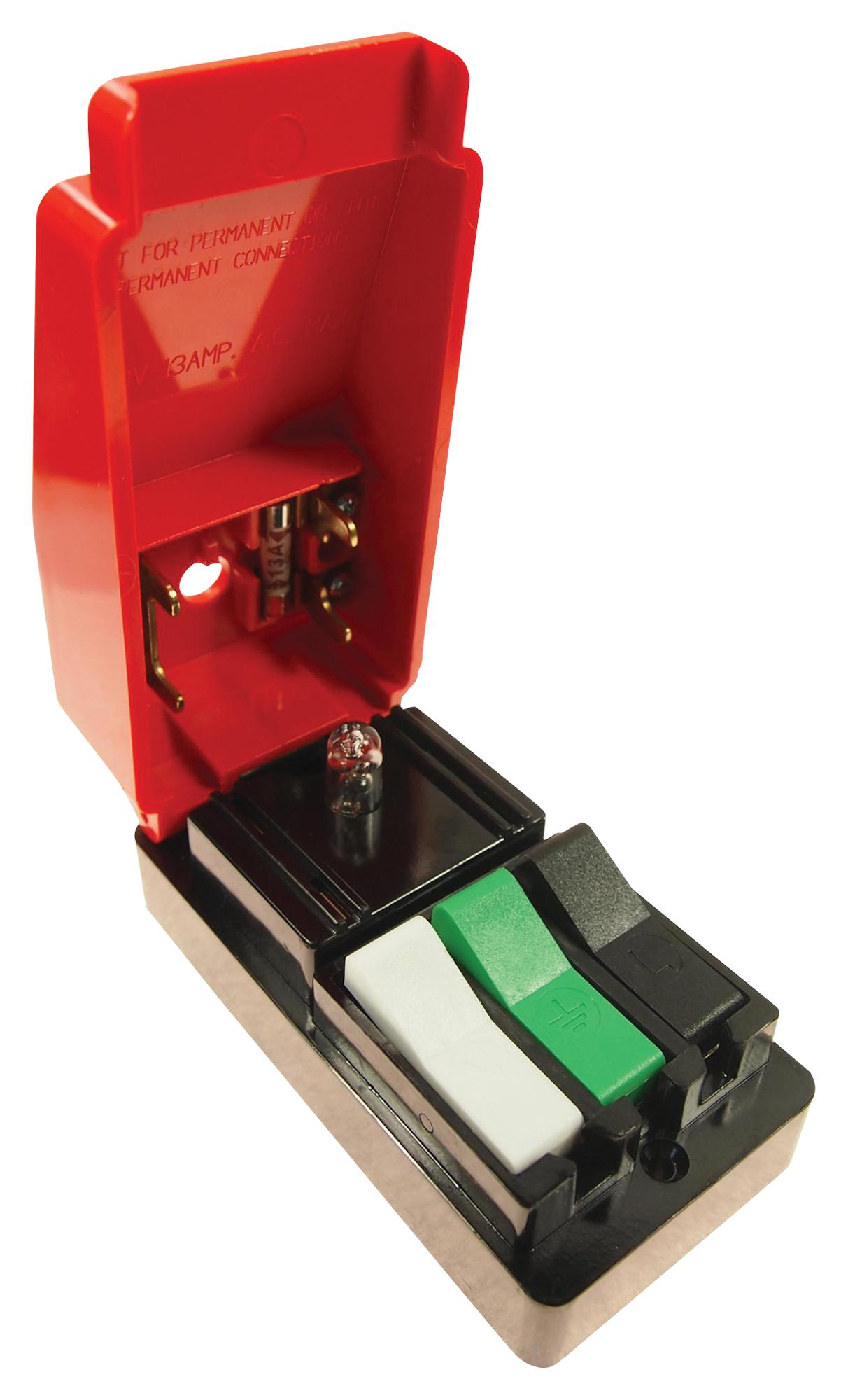

The Cliff Quicktest QT1 (CL1857) is a 13A quicktest ideal for electrical shops, factories, labs and service departments. Insert plugless leads into the insulated clips with the lid open, closing it allows current to pass through, and a neon light confirms the connector is live and ready to use. It's built from tough, safe materials, with color-coded clips and a flexible cable grip that accepts any normal mains cable.
Key Features
Durable Construction
The phenolic base is molded for insulation and rigidity and the lid is flame-retardant glass-filled thermoplastic.
Color-Coded Insulated Clips
The insulated clips are color coded for easy identification and flexible cable grips accommodate any normal mains cable.
Live Indicator
A built-in neon light shows that the connector is live and ready to use.
Accessible Design
Only a single small screwdriver is required for both the base entry and the terminal screws. The fuse (BS 1362) is also easily accessible for replacement.
Specifications
- Size: 130mm x 60mm x 50mm
- Max rating: 13A AC 250V | 5A DC 24V
- Weight: 0.04 oz (without cable)
-
Duty Cycle (per 10 minutes)
- 13 Amps - 25%
- 10 Amps - 40 %
- 7 Amps - 80%
- 5 Amps - 100%
Notes
- This device does not include a cable.
- For test purposes only - NOT to be used for permanent or semi-permanent connections.
- Always attach the ground connection for safety.
- Always use in conjunction with an RCD.
- Must be used by suitably trained and qualified personnel when making a connection to the mains supply.
- It is the end user's responsibility to ensure this device is used in a safe manner to ensure no injury is caused to the operators.
- View the Datasheet for more information.
Attributes
Reviews
No reviews on this product yet.
