Zooz 800 Z-Wave Long Range High Power Relay

Zooz 800 Z-Wave Long Range High Power Relay

The Zooz High Power Relay is designed for safely automating and controlling heavy-duty 240VAC appliances. With a 40A rating and built-in over-current protection (triggering at 40.5A), it provides reliable performance while helping protect connected equipment.

Key Features

On/Off Z-Wave Control

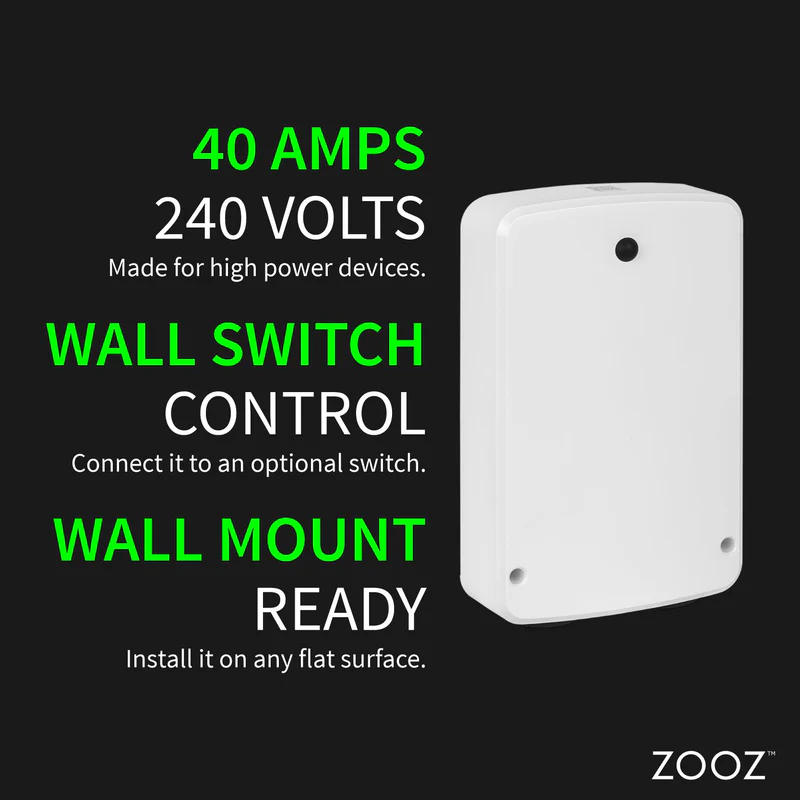

Supports high power loads up to 40A, perfect for 240VAC heavy duty installations. You can learn more about recommended load sizes here.

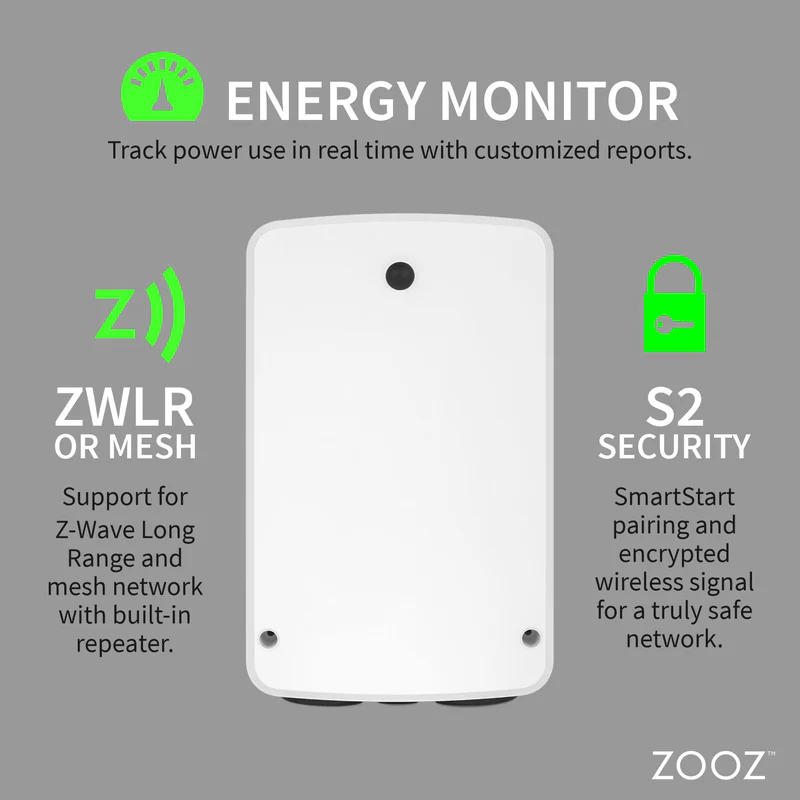

Power Monitoring

This device reports energy use in Watts, kWh, Amps, and Volts (note: reporting threshold and frequency are adjustable in advanced settings).

Dry Contact Switch

Connect and control from a wall switch (NO VOLTAGE ON INPUT, see wiring diagram).

Indoor Only

You will need a weatherproof box to install this device outdoors, see specs for details.

800 Series Z-Wave Chip

Provides fast, secure, and rock solid wireless connectivity.

Z-Wave Long Range

If your hub is capable of using Long Range, you can benefit from ultra reliable direct device-to-hub communication which extends the range like never before and eliminates network lags.

Built-In Signal Repeater

Helps keep your network quick and reliable is a traditional Z-Wave mesh.

S2 Security

This relay supports SmartStart and S2 Z-Wave security for a truly protected smart home.

Specifications

• Z-Wave Region: US/CA/MX
• Power: 120-240 VAC, 60 Hz
• Maximum Load: Resistive Load: 40 A, 9600 W; Inductive Load: 4HP – 5,000 Cycles, 3HP – 20,000 Cycles
• Standby power consumption: 1W
• Operating Temperature: 32° – 104° F
• Range: Up to 300 feet (or up to 1300 feet with ZWLR)
• Installation and Use: Indoor only (IPX3)

Note

• It is recommended that a licensed electrician completes the installation of any 120-240V high-power device according to the appropriate wiring diagram.
