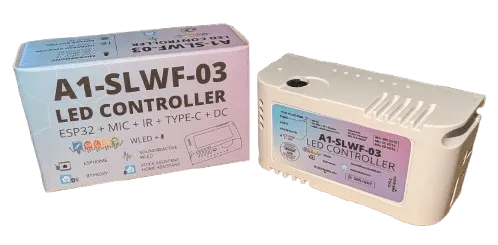

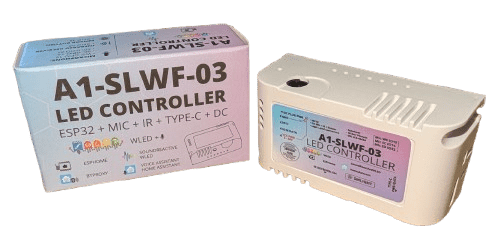

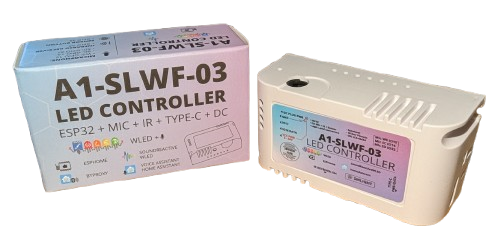

SMLIGHT LED Controller A1-SLWF-03

About

A1-SLWF-03 is the latest innovation in smart lighting technology. Designed for both enthusiasts and professionals, this compact yet powerful device offers unparalleled control over LED lighting systems. Whether you’re creating dynamic lighting for a home theater, setting up intricate displays for commercial use, or experimenting with DIY lighting projects, the A1-SLWF-03 provides the flexibility and performance you need. By default, supplied pre-flashed with WLED firmware and ready to use, just plug-and-play.

KEY FEATURES

• 5V, 12V, 24V LED strips support. You can use most addressable LED strips that work with 5-24V power.
  Please note that the Data pin exposes the same voltage as the strip voltage.
• USB-C powering, forget about wiring, rare-to-find connectors. Just use a standard USB-C cable to power your strips!
• Built-in digital I2S microphone, so SLWF-03 could be used as a sound-reactive controller with latest releases of WLED firmwares or ESPHome.
• The built-in microphone also allows for the SLWF-03 to be used as a Voice Assistant (as a microphone board) for Home Assistant.
• Built-in IR receiver to support IR controls.
• Built-in sensor button to control the device by the sensor.
• 5V, 12V and 24V LED strips support. You can use most addressable LED strips that work on 5-24V power.
• Over-the-air updates for Zigbee and Core.
• Built based on the Espressif ESP32 SoC version with 2 cores. Can control up to 1500-2000 LEDs with 30FPS.
• Built-in programmer and auto-flash mode, so you can easily update or restore in case of failure.
• 2 channels for LED strip connection in screw terminal. Could also be extended by using available pinouts on the board.
• Can work as a Bluetooth bridge for Home Assistant with ESPHome firmware flashed – BTProxy.
• Easy LED wires connection through screw-terminal.
• Full WLED connectivity and support.
• Suited for personal and business use.

What’s in the box?

• 1x A1-SLWF-03 WLED controller
• 1x microUSB-to-USB-C adapter
• 2x adhesive tapes – if you want to stock your adapter
• 2x screws – if you want to fix your adapter by screws
• 1x screwdriver for screw-terminal
• 1x screwdriver for screws
