Cliff Quicktest QT1

Cliff Quicktest QT1 | CL1857

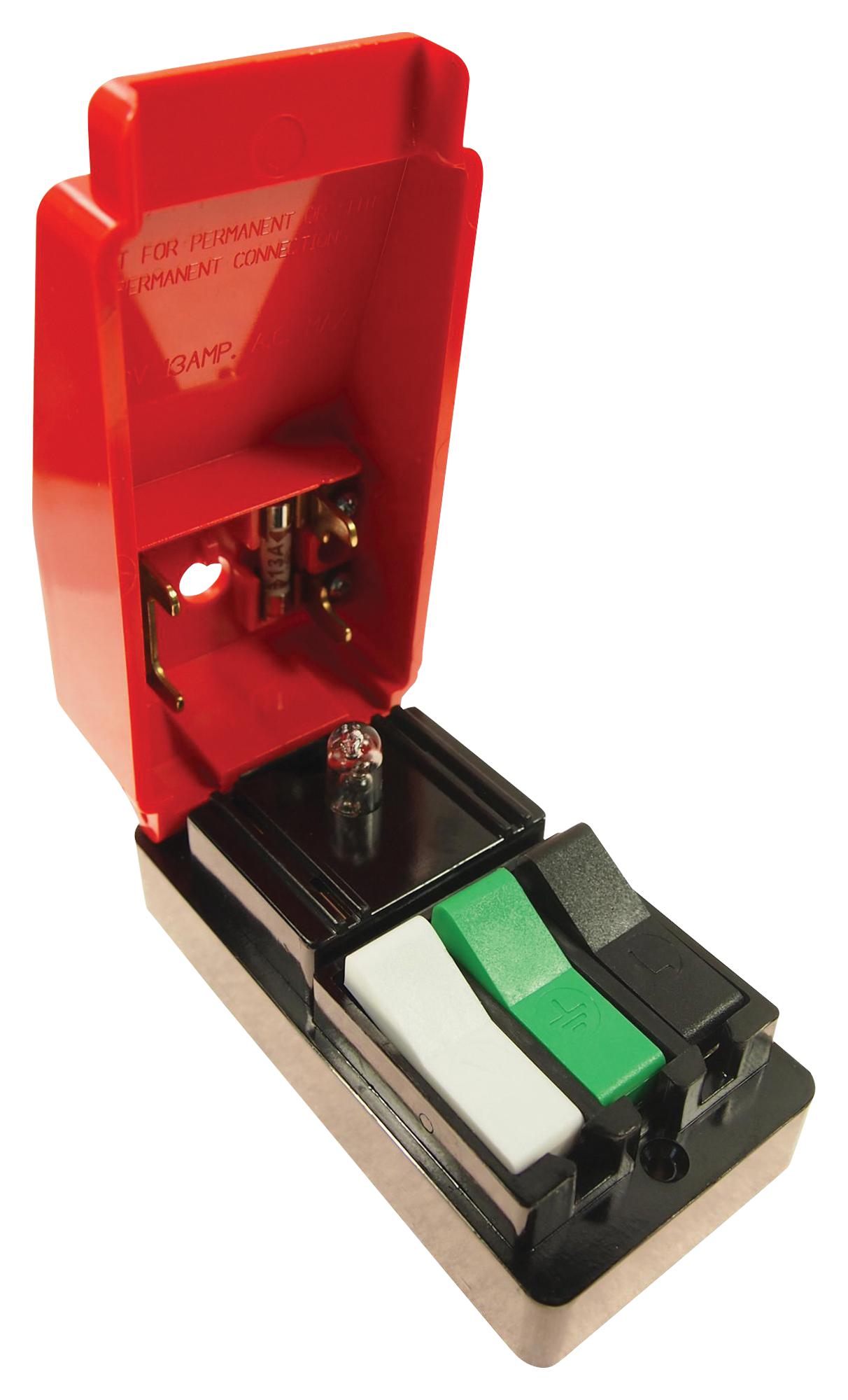

The Cliff Quicktest QT1 (CL1857) is a 13A quicktest ideal for electrical shops, factories, labs and service departments. Insert plugless leads into the insulated clips with the lid open, closing it allows current to pass through, and a neon light confirms the connector is live and ready to use. It’s built from tough, safe materials, with color-coded clips and a flexible cable grip that accepts any normal mains cable.

Key Features

Durable Construction

The phenolic base is molded for insulation and rigidity and the lid is flame-retardant glass-filled thermoplastic.

Color-Coded Insulated Clips

The insulated clips are color coded for easy identification and flexible cable grips accommodate any normal mains cable.

Live Indicator

A built-in neon light shows that the connector is live and ready to use.

Accessible Design

Only a single small screwdriver is required for both the base entry and the terminal screws. The fuse (BS 1362) is also easily accessible for replacement.

Specifications

• Size:  130mm x 60mm x 50mm
• Max rating: 13A AC 250V | 5A DC 24V
• Weight: 0.04 oz (without cable)
• Duty Cycle (per 10 minutes)
  • 13 Amps – 25%
  • 10 Amps – 40 %
  • 7 Amps – 80%
  • 5 Amps – 100%

Notes

• This device does not include a cable.
• For test purposes only – NOT to be used for permanent or semi-permanent connections.
• Always attach the ground connection for safety.
• Always use in conjunction with an RCD.
• Must be used by suitably trained and qualified personnel when making a connection to the mains supply.
• It is the end user’s responsibility to ensure this device is used in a safe manner to ensure no injury is caused to the operators.
• View the Datasheet for more information.
