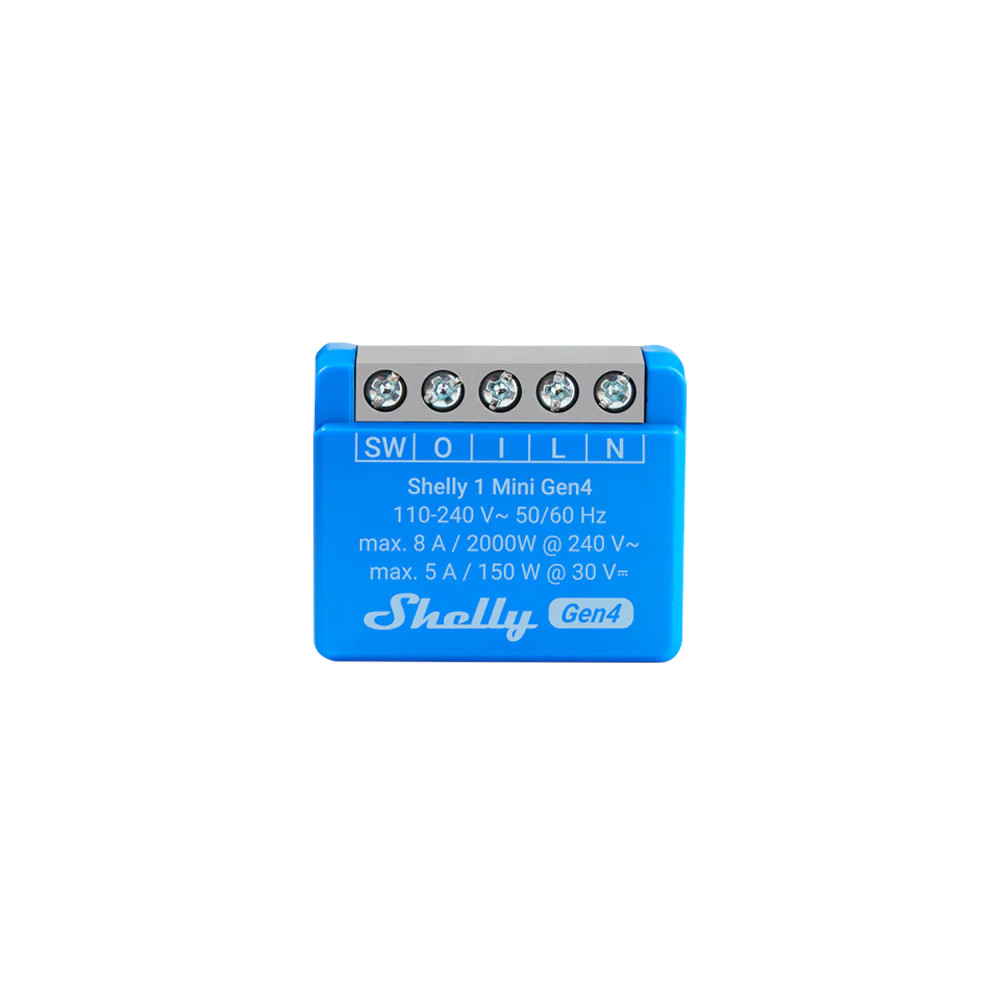

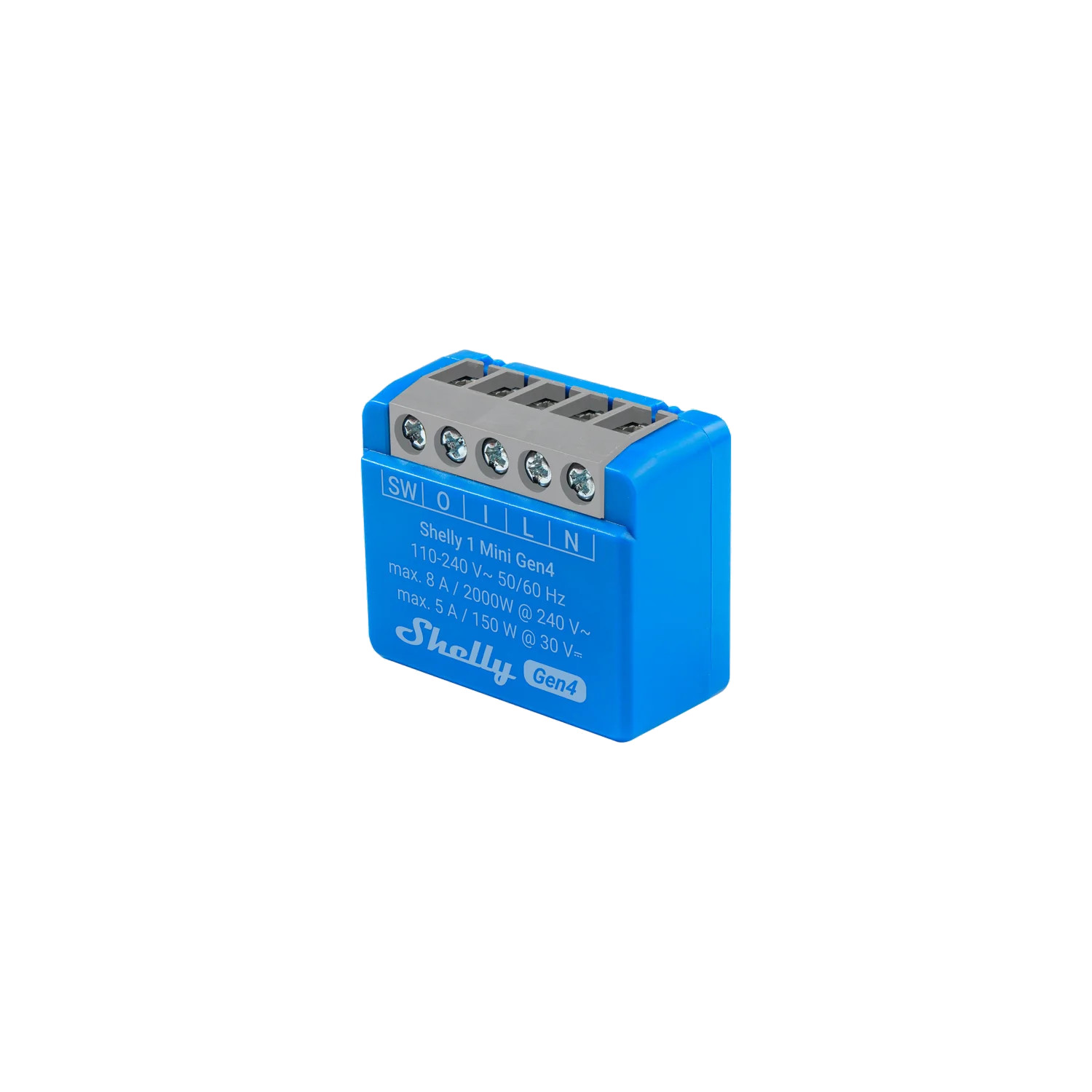

Shelly 1 Mini Gen4

Shelly 1 Mini Gen4

The 1 Mini Gen4 is Shelly’s next generation compact smart switch for controlling lights and small appliances up to 8 A.

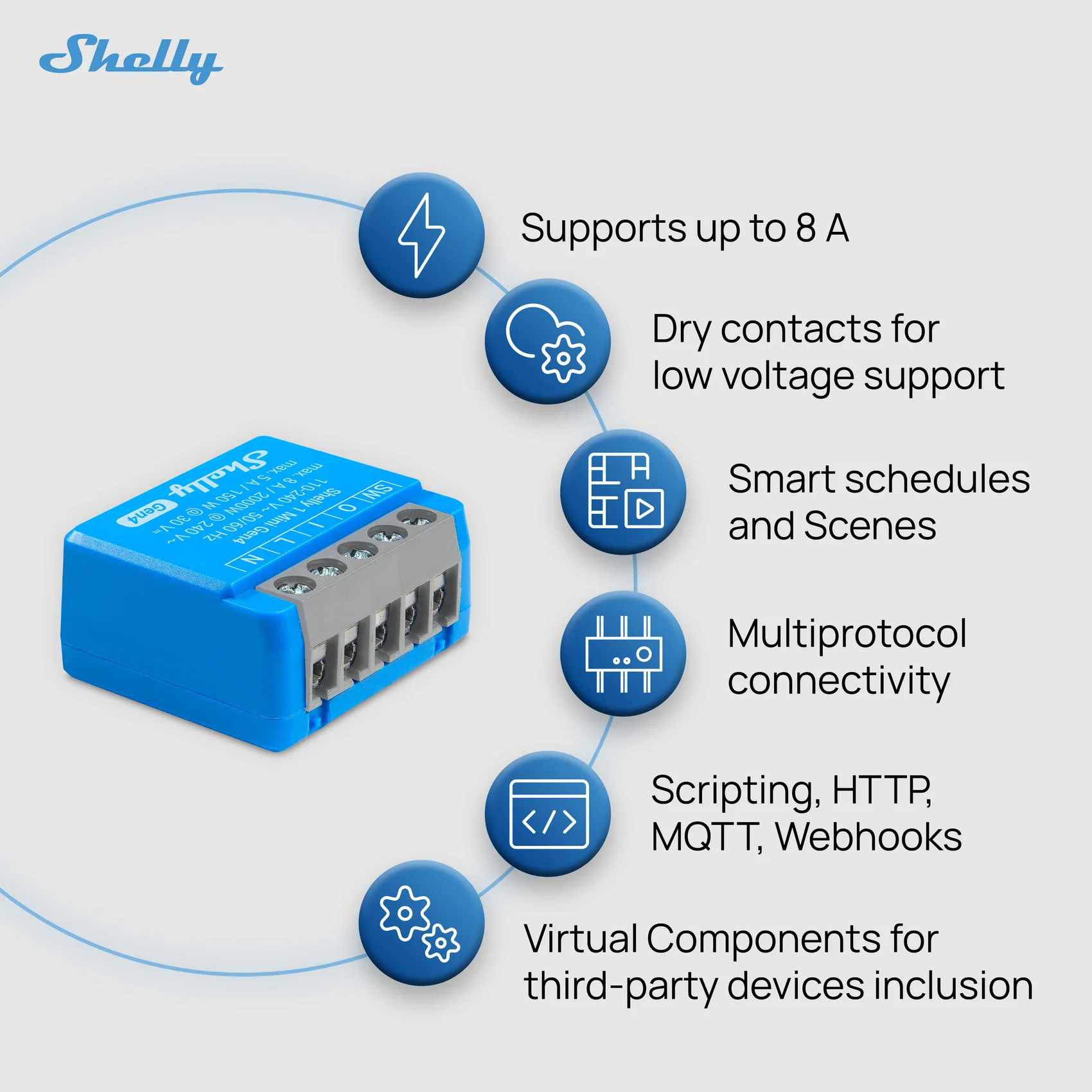

Key Features

Multiprotocol Connectivity

Choose the best protocol for your smart home between Zigbee, Wi-Fi, or Bluetooth.

Matter Certified

Integrates into any Matter ecosystem.

High/Low Voltage Support

Supports up to 8 A at 240 VAC and 5 A at 30 VDC.

Dry Contacts

Supporting low and high voltages, this device enables you to control a wide range of AC devices and appliances.

Smart Schedules

Set custom schedules based on your daily routine, or follow the sunrise/sunset and control your light accordingly.

Smart Scenes

Set custom scenes by pairing this device with other devices in your smart home.

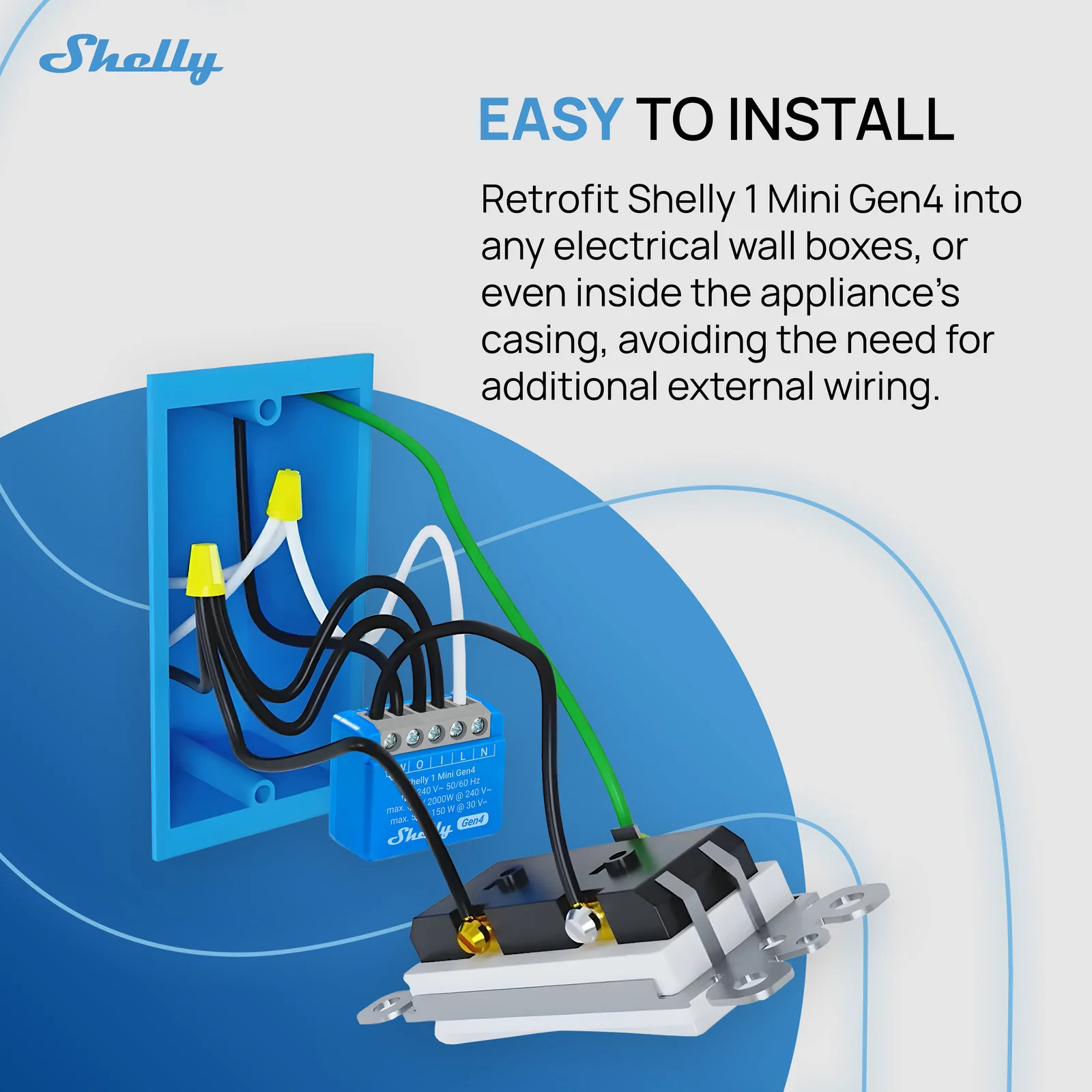

Retrofit Your Setup

The device’s compact design allows it to fit into tightly packed spaces and switch boxes, allowing you to turn your existing electrical appliances into smart devices.

Specifications

• Environmental
  • Ambient working temperature: -5°F to 105°F
  • Humidity: 30% to 70% RH
  • Maximum altitude: 6562 ft
• Electrical
  • Power supply: 100 – 240 V~
  • Relay: Dry, NO contact, 1-pole, µ contact
  • Power consumption: < 1.2 W
  • External protection: Tripping characteristic B or C
    • Maximum 10 A maximum rated current
    • Minimum 6 kA interrupting rating
    • Energy limiting class 3
• Output Circuits Ratings
  • Maximum switching voltage: 240 V~ | 30 V⎓
  • Maximum switching current: 8 A / 240 V
    • 150 W / 30 V⎓

Note

• If you are not comfortable working with wiring, please hire a licensed electrician.
