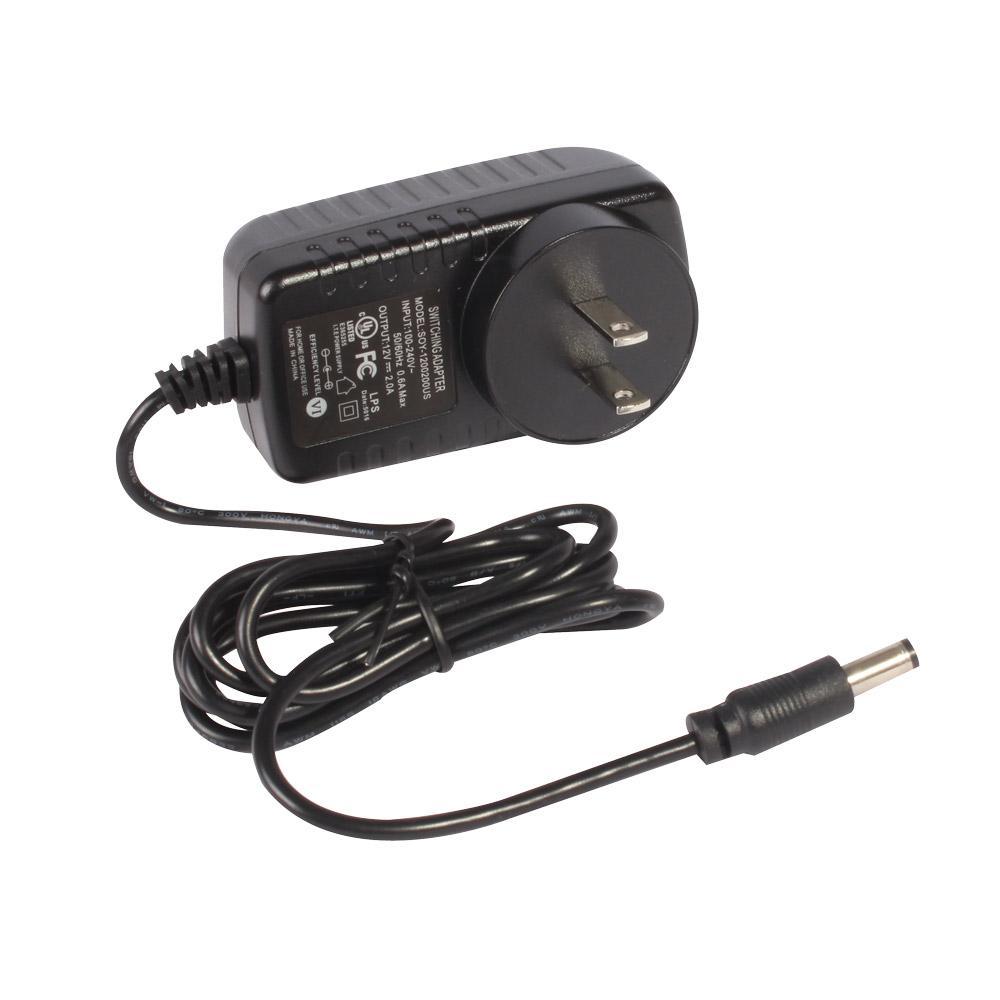

24W DC Power Supply

24W DC Power Supply

Light weight, compact and highly efficient switch mode design incorporates regulated output within 3% of rated output, even with no load. Compatible with the PiKVM V4 Plus.

Specifications

• Input
  • Rated voltage: 100 – 240V AC
  • Variation range: 90 – 264V AC
  • Rated frequency: 50 / 60Hz
  • Variation frequency: 47 – 63Hz
  • Input current: 0.6A maximum at any input AC voltage and output full load
  • Inrush current: 35A maximum cold start at 240V AC input, rated output load and 25°C ambient
  • AC leakage current: 0.25mA maximum at 240V AC input
• Output
  • Voltage: 12V DC
  • Minimum load: 0.01A
  • Rated load: 2A
  • Output Power: 24W
• Combined load / Line Regulation
  • Voltage: 12V DC
  • Minimum load: 0.01A
  • Rated load: 2A
  • Line regulation: ±1%
  • Load regulation: ±3%
• Ripple and Noise
  • Under normal voltage and nominal load, the ripple and noise are as follows when measured with maximum bandwidth of 20MHz and parallel 10µF electrolysis capacitor and 0.1µF ceramic capacitor crossed connect at testing point.
    • Volage: +12V DC
    • Ripple and Noise (Max): 120mVp-p
  • Turn on delay time: 2S maximum at 115V AC input and output maximum load
  • Rise time: 40mS maximum at 115V AC input and output maximum load
  • Hold up time: 5mS minimum at 115V AC input and output maximum load
  • Efficiency: Average efficiency 87.4% minimum at 25%, 50%, 75% and 100% of full-loading and 230V AC input (after warm up 30 minutes)
    • Meet with Energy star level VI.
    • No load input watt ≤ 0.1W
  • Overshoot: 10% maximum when power supply is turned on or off
• Environmental requirement
  • Operating temperature: 0°C to 40°C, full load, normal operation
  • Storage temperature: -40°C to 85°C
  • Relative humidity: 5% (0°C) ~ 95% (40°C) RH, 72Hrs, full load, normal operating
• Outline dimension
  • Out cord
    • UL1185 18AWG VW-1 80° 300V, FT1 line with word on the cord
      • Length 1.2m
  • DC Plug
    • 5.5mm x 2.1mm x 12mm
